Mini Sabre Vanes
Mini Sabre Vanes
DESIGNED AND MOLDED IN INDIANA - PATENT 11,686,562

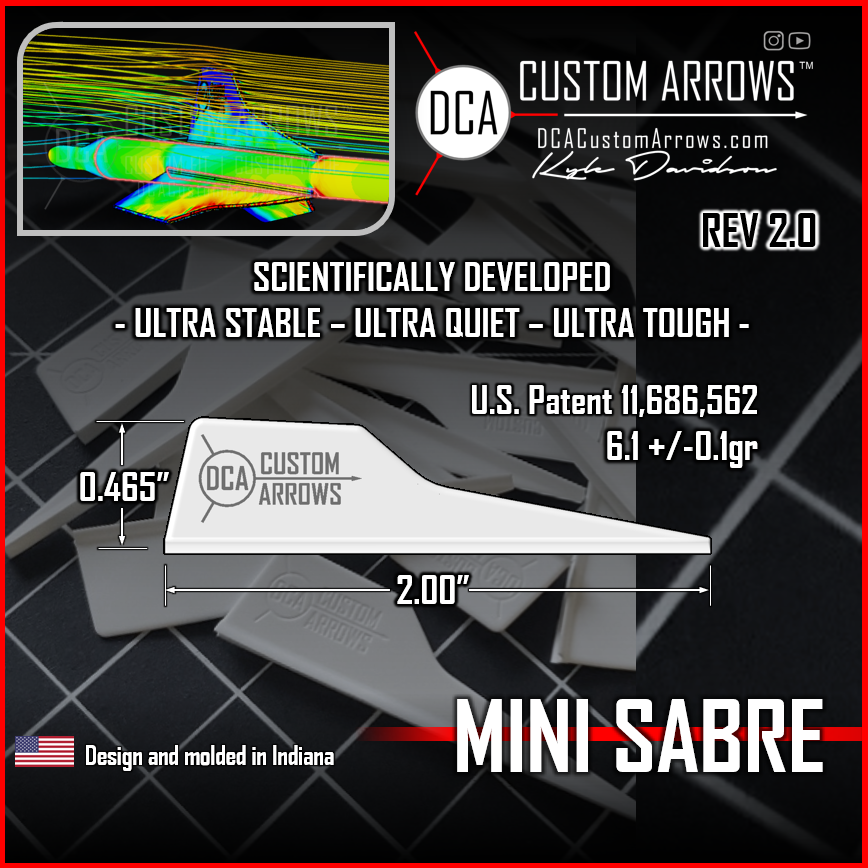

Weight: 6.0 +/-0.1 Grains
Height: .465 Inches
Length: 2 Inches
Couldn't load pickup availability
Share
![Mini Sabre Vanes](http://dcacustomarrows.com/cdn/shop/files/20230801_155045-01.jpg?v=1691017475&width=1445)
![Mini Sabre Vanes](http://dcacustomarrows.com/cdn/shop/files/InstagramPostSabreMini.png?v=1691017475&width=1445)
![Mini Sabre Vanes](http://dcacustomarrows.com/cdn/shop/files/20230801_155401-01.jpg?v=1691017475&width=1445)
![Mini Sabre Vanes](http://dcacustomarrows.com/cdn/shop/files/VATSettingforSuperSabres.png?v=1691088603&width=1445)
![Mini Sabre Vanes](http://dcacustomarrows.com/cdn/shop/products/20230804_153903-01.jpg?v=1691178216&width=1445)
![Mini Sabre Vanes](http://dcacustomarrows.com/cdn/shop/products/20230804_153743-01.jpg?v=1691178234&width=1445)
![Mini Sabre Vanes](http://dcacustomarrows.com/cdn/shop/products/20230804_153951-01.jpg?v=1691178249&width=1445)
![Mini Sabre Vanes](http://dcacustomarrows.com/cdn/shop/files/DCACustomArrows-MiniSabre.jpg?v=1691178275&width=1445)
![Mini Sabre Vanes](http://dcacustomarrows.com/cdn/shop/files/20240404_181820-01.jpg?v=1712350125&width=1445)
![Mini Sabre Vanes](http://dcacustomarrows.com/cdn/shop/files/20240404_181638-01.jpg?v=1712350146&width=1445)
![Mini Sabre Vanes](http://dcacustomarrows.com/cdn/shop/files/20240404_192831-01.jpg?v=1712350166&width=1445)
ULTRA STABLE - ULTRA TOUGH - ULTRA QUIET
-
SCIENTIFICALLY DEVELOPED
Scientifically developed and tested using computational fluid dynamics (CFD), stability calculations used by NASA, a custom-made wind tunnel, and a LabRadar (Doppler radar).
-
MATERIAL
Rev 2.0 is ridiculously tough. The material can be stretched and returned to shape. Pass-throughs on targets are no problem. The material also has much better adhesion and can be used with all known vane adhesives after wiping the base of the vane with 70% alcohol wipe or primer pen.
-
INDIVIDUALLY MOLDED
The Mini Sabres are all very consistent. Shown by the weight consistency of 6.0 +/-0.1 gr. All exactly identical. The 8-cavity mold means there will not be any shortages moving forward.
Application Method
- Clean the arrow shaft or wrap with a clean, dry paper towel.

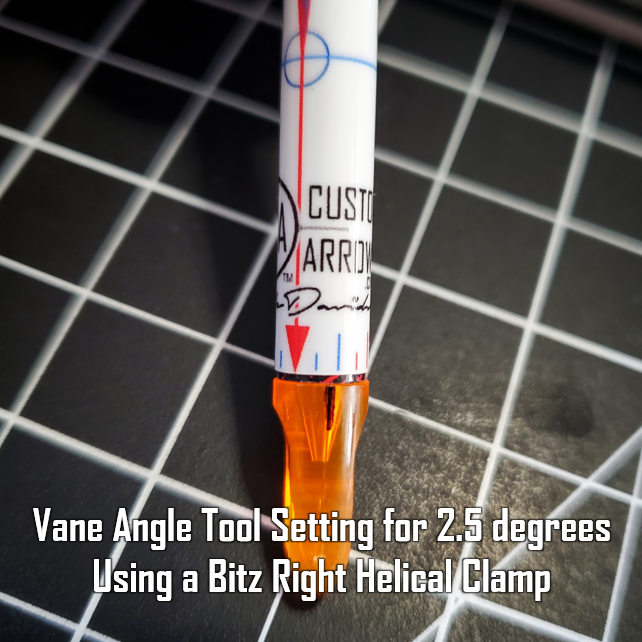

- Place Super Sabre in the fletching jig clamp set at 2.5 degree helical.
- Clean the base thoroughly using 70% isopropyl alcohol wipe or primer pen. Rewet alcohol wipe with 70% isopropyl alcohol if it dries.
- Wipe base of vane with a DRY paper towel 3-4 times until you feel the friction increase. This means all the alcohol is gone.
- Apply adhesive to the bottom of the vane. Just a very thin continuous bead of Maxi-Cure is highly recommended.
- Using the clamp, press the vane down holding it securely for 10 sec. (or recommended time on adhesive)
- Unclamp the vane and wipe excess glue from around the base of the vane.
- Let the adhesive cure for 15-20 min.
Fletch Sabre Vanes
The design is amazing. The reputable hunters and archers using this product are some of the best. I fletched 3 arrows and had a decent 20 yd grouping, so I fletched 9 more. When I was tuning my bow at 30, 40, 50 yds I couldn’t get a good grouping and I could see some of the arrows had unusual flight patterns. I’m using 340 spine Axis 5mm arrows, with SS inserts and 100 g field points and whitewater wraps. Total arrow weights is around 448 g. It’s possible I’m not using the right setup as I’m still a bit new to bow hunting as this is my 3rd year. After about 200 arrows I decided to try my arrows from last year with AAE max 3 fletch—identical setup, and my groupings out to 50 yds were about 4 inches. It’s very possible I ran these wrong. Any feedback is greatly appreciated.
Very quiet and definitely look unique!!! Highly recommend these!
Hollywood
You can't find a more tested vane. The Sabre's and Mini's do exactly what DCA claims. These guys deliver.
Mini Sabre Vanes
Work great, steer well, stick great, and they look bada**
